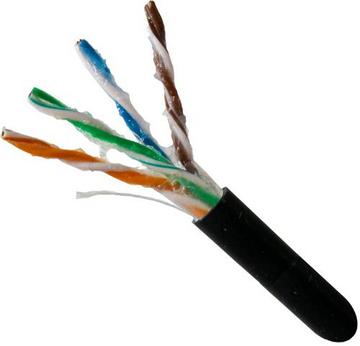

1000FT Cat5E Gel Filled (Flooded), UV Resistant Direct Burial Outdoor Bulk Cable
Price:
$149.99
back add to cart
Dispensing Type/Color
Quantity
add to cart

Item #2

Gel Filled (Flooded Core) and UV Resistant, Direct Burial  #059-485/CMXF  $145.99 as low as

THIS CABLE WILL WORK GREAT FOR MOST CUSTOMERS LOOKING FOR OUTDOOR CABLE


Details:



1000FT Cat5E Gel Filled (Flooded Core) & UV Resistant Direct Burial Outdoor Bulk Cable
    - - - - - - - - - Prices - - - - - - - -

-QTY 1 Box             $
149.99
-QTY 2-4 boxes
$148.99 ea
-QTY 5-9 boxes       $147.99 ea
-QTY 10 or more    $145.99 ea


059-485/CMXF

SPECS:

  • High-Performance Data Communications Cable
  • Suitable for 350MHz High-Speed Data Applications,
    Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
  • Gel Filled Flooded Core Designed for Direct Burial Installations
  • UV Resistant for above ground applications and Flooded Gel Core for in ground use
  • Outer Jacket Material- Linear Low Density Polyethylene's (LLDPE)
  • Category 5E rated to 350MHz
  • UTP- Unshielded Twisted Pair
  • 4-Pair - Easily Identified Color-Striped Pairs
  • 24AWG, Solid Copper Conductors
  • Excellent Attenuation and Crosstalk Characteristics
  • Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
  • ETL® Listed
  • RoHS Compliant
  • Supplied in 1000´ Pull Box
  • Made in China



TECHNICAL SPECS:
Rated Temperature: 75
ºC
Operating Temperature range -20ºC to +60ºC
Product Standard Certification: CMX
Flammability Test:                  CMX
Application Horizontal Wiring in LAN
Reference Standard: EIA/TIA 568 & ISO/IEC 11801

Conductor: Solid Bare Copper
Size: 24 AWG
Diameter: (mm) 0.50

Insulation: PE
Average Thickness: (mm) 0.208
Min. Point Thickness: (mm) 0.186
Insulation Diameter: (±0.005mm) 0.91
Twisted Pair Diameter: (±0.01mm) 1.92

Assembly Diameter: (±0.2mm) 4.00
Filler: Gel Filled
PE Tape: Yes
Jacket: LLDPE (UV)

Average Thickness: (mm) 0.60
Min. Point Thickness: (mm) 0.54
Outer Diameter: (±0.10mm) 5.40
Rip Cord" Yes
Color: Black
Mechanical Characteristics:
Test Object:   Jacket
Test Material: LLDPE
Before Tensile Strength: (Mpa) >=13.8
Aging Elongation: (%) >=100
Aging Condition: (ºCxhrs) 100x168
After Tensile Strength: (Mpa) >=85% of unaged
Aging Elongation: (%) >=50% of unaged
Cold Bend: (-20±2º Cx4hrs) No Crack


To View Full Spec Sheet Click Here (larger file may take a moment to load)

Old Product # C5E-1000-CMXFF

New P/N 059-485/CMXF   $145.99 (as low as)
