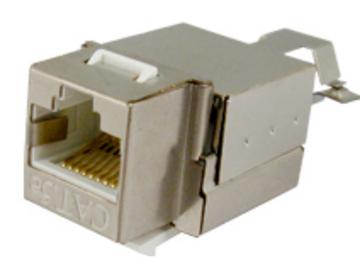

CAT6 Shielded (STP) Data Jack
add to cart add to wishlist

 Cat6 Shielded


360º Shielding Structure to prevent EMI 110-IDC Contacts (Terminal Block)
• Color Coded for 568A and 568B
• EIA/TIA 568A/B standards
• ANSI/TIA-568-C.2 , ISO/IEC11801, EN50173-1
• Thermoplastic ABS Housing
• RoHS Compliant

•Requires a Krone Type punchdown tool for installation

Physical Specifications
Dimension (mm)            19.35H x 21W x 46.83D

Housing Material
Housing & Cap              Polycarbonate

Contact Material
IDC 110 Contacts         100μ Inch nickel plated over phospor bronze plating over nickel
Jack Operating Life       Minimum 750 insertions
Shielded Cover              50~60μ inch nickel plated over phospor bronze

Product Qualifications
ANSI/TIA-568-C.2 ETL Listed


Dielectric strength             1000V RMS for 1min
Insulation resistance        10mΩ min
Contact Resistance        2mΩ per contact
Temperature Range      -10°C to 60°C max
Humidity                          10%~65%
IDC Operating Life        Minimum 250 re-terminations
Jack Contact                  Phospor bronze, 50μ inch gold
Compability                    23 to 26 AWG (solid)

 : Product# 302-J2631/S


Add to favorites

Please consider purchasing some of these products before you checkout:


For Shielded Cat5e Cable  (not for CAT6 STP)


CAT5E UnShielded  Feed Through Plug


CAT5E Shielded Feed Through Plug  p/n 011-019/EZF-100


CAT6A /CAT6 UnShielded  Feed Through Plug  p/n 012-025/EZF-100

(For use with CAT6A UTP Cable and oversized CAT6 UTP conductors up to 1.2mm in diameter)


CAT6A /CAT6 Shielded Feed Through Plug


$1.50ea  Any Quantity!
A Best Seller!!


$1.99ea  Any Quantity!!
