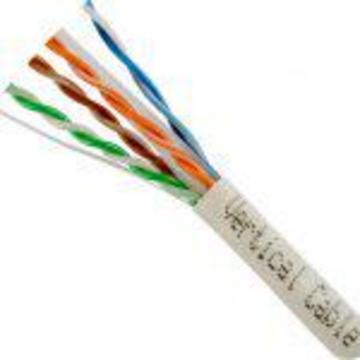

Category-6A 10Gb UTP 1000’ 8-Conductor, PVC Jacket, AWG23 Solid-Bare Copper
- - - - - - - - - Prices - - - - - - - -
-QTY 1 Spool $197.99 + $40.00 tariff = $237.99
-QTY 2 - 4 Spools $196.99ea + $40.00 tariff = $236.99
-QTY 5 or more Spools $195.99ea + $40.00 tariff = $235.99
Product #
064-484/A/BK (Black)
064-485/A/BL (Blue)
064-687/A/GR (Green)
064-688/A/GY (Gray)
064-689/A/OR (Orange)
064-692/A/RD (Red)
064-486/A/WH (White)
064-693/A/YL (Yellow)
FEATURES AND BENEFITS:
• High-Performance Data Communications Cable
• Suitable for 10Gb/S High-Speed Data Applications
• Designed for Indoor Installations (CMR) Riser
• Category-6A (Augmented) Unshielded Twisted Pair (UTP) Cable
• 4-Pair – Easily Identified Color-Striped Pairs
• 23AWG Solid Bare Copper Conductors
• Excellent Attenuation and Crosstalk Characteristics
• Exceeds ANSI EIA/TIA 568-C.2
• ETL Listed
• Supplied in 1000´ Wooden Spool
• RoHS Compliant
• Made in China
Spec Sheet Download
TECHNICAL SPECS:
Rated Temperature (ºC) 70
Rated Voltage (V) 30
Insulation PE:
Average Thickness (mm) 0.268
Min. Point Thickness (mm) 0.245
Insulation Diameter (±005mm) 1.12
Assembly Diameter 6.50mm
Jacket PVC (Riser rated)
Colors: Black, Blue, Gray, Green, Red, White & Yellow
Mechanical Characteristics
Test Object: Jacket
Test Material: PVC
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition (ºCxhrs) 100x168
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend (-20±2º Cx4hrs) No Crack
Electrical Characteristics:
| Frequency
(Mhz)
|
Return Loss
(Min dB) |
Attenuation
Max (dB/100m) |
Next
(ns/100m) |
TCL
dB |
PSNext
(Min dB)
|
ELFEXT
Min(db/100m) |
Delay
Max(ns/100m) |
|
1
|
20
|
2.1
|
74.3
|
40.0
|
72.3
|
71.8
|
570
|
|
4
|
23
|
3.8
|
65.3
|
40.0
|
63.3
|
59.8
|
552
|
|
8
|
24.5
|
5.3
|
60.8
|
40.0
|
58.8
|
53.7
|
546.7
|
|
10
|
25
|
5.9
|
59.3
|
40.0
|
57.3
|
51.8
|
545.4
|
|
16
|
25
|
7.5
|
56.2
|
38.
|
54.2
|
47.7
|
543
|
|
20
|
25
|
8.4
|
54.8
|
|
52.8
|
45.8
|
542
|
|
25
|
24.3
|
9.4
|
53.3
|
|
51.3
|
43.8
|
541.2
|
|
31.25
|
23.6
|
10.5
|
51.9
|
|
49.9
|
41.9
|
540.4
|
|
62.50
|
21.5
|
15
|
47.4
|
|
45.4
|
35.9
|
538.6
|
|
100
|
20.1
|
19.1
|
44.3
|
|
42.3
|
31.8
|
538
|
|
200
|
18
|
27.6
|
39.8
|
|
37.8
|
25.8
|
537
|
|
250
|
17.3
|
31.1
|
38.3
|
|
36.3
|
24.3
|
536
|
|
300
|
16.8
|
34.3
|
37.1
|
|
35.1
|
22.3
|
536
|
|
400
|
15.9
|
40.1
|
35.3
|
|
33.3
|
19.8
|
536
|
|
500
|
15.2
|
45.3
|
33.8
|
|
31.8
|
17.8
|
536
|
1.0-100MHz Impendance (Ohms) 100±12
100-350MHz Impendance (Ohms) 100±15
350-750MHz Impendance (Ohms) 100±22
1.0-750MHz Delay Skew (ns/100m) <=25
Pair-to-Ground Capacitance Unbalance (pF/100m) <=330
Max. Conductor DC Resistance 20°C (ohms/km) 93.8
Resistance Unbalance (%) <=3
Product Standard Certification Flammability Test: CMR (Riser Rated)
Conductor Solid Bare Copper:
Size 23 AWG
Diameter (mm) 0.585
Twisted Pair Diameter (±0.01) 2.24
Separator: LDPE (Low Density Polyethylene)
Average Thickness (mm) 0.60
Min. Point Thickness (mm) 0.50
Outer Diameter (±0.10mm) 8.00 (very thick)
Rip Cord Yes
Color of Pairs :
Pair 1 Blue,White-Blue
Pair 2 Orange,White-Orange
Pair 3 Green,White-Green
Pair 4 Brown,White-BrownTest Object Jacket
Vertical P/N: 064 Series
Product #C6A-486/AUG
