1000FT Cat5e Heavy Duty, UTP, Direct Burial, Outdoor Gel Filled Bulk Cable

Price:	$205.99

Dispensing Type/Color

Quantity

Item #3 p/n DC-1020
�

HEAVY DUTY CABLE over 1/4 inch thick
UV Resistant
Direct Burial (Gel Filled)
Unshielded - UTP

Has 2 jackets plus the gel fill. Amazing water proof potential!

Use for either above-ground or in-ground.�

As low as $196.99

Details:

1000FT Cat5e Heavy Duty, Unshielded, UV-Resistant & Direct Burial Gel Filled Outdoor Bulk Cable

Prices:

1 Reel in a Box $205.99ea
2-4 Reels $199.99ea
5 -9 Reels $197.99ea
10 or More Reels $196.99ea

Details:

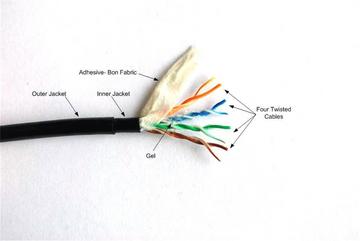

HEAVY DUTY CABLE over 1/4 inch thick. Accepts standard sized RJ45s... but very snug fit
2nd PVC jacket layer inside cable for additional water proofing
Meets TIA/EIA 568B.2 or Greater Networking Standard
Supports 10/100/1000Mbps (Gigabit Ethernet)
UTP (Unshielded Twisted Pair)
24AWG Solid Copper Core
UV Stabilized PE Jacket
Gel Filled for Direct Burial Applications
Ripcord
Reel in a box
Shireen Brand P/N DC-1020
Made in China

Availability: In Stock
Return Policy: 30 Day Return Policy

Electrical Specification

Velocity of Propagation	68%
Capacitance @ 1 KHz	15 pF/ft

Standard	TIA/EIA 568B.2 or greater

Cable Construction

Center Conductor	Solid bare copper(BC) 24awg .02in .51mm
Insulation	High Density Polyethylene (HDPE) .04in .93mm
Color	Blue/ White w/blue stripe Orange/ White w/orange stripe Green/ White w/green stripe Brown/ White w/brown stripe
Sheath Material & Thickness Cable Diameter	PE with Grease .024 in .60mm .27in 6.90mm
Assembly	Ripcord

Mechanical And Environmental Specifications

Cable weight	16.3 kgs/1000ft
Operating Temperature Range	-49F to +149F (-45C to +65Celcius)

Electrical Characteristics

Frequency, MHZ	1	4	8	10	31.25	62.5	100
Attenuation, dB	2.0	4.1	5.8	6.5	11.7	17	22
Structured Return Loss (SRL), dB	20	23	25.4	25	23.6	21.5	20.1
NEXT, dB	65.3	56.3	51.8	50.3	42.9	38.4	35.3
ELFEXT, dB	63.8	51.7	45.7	43.8	33.9	27.8	23.8

New P/N DC-1020 (Old Product# C5E-1000-UTP-DB )
