Item #25

Direct Burial CAT6, STP shielded w/ an additional Internal Jacket Layer.  #069-561/CMXT    $247.99 as low as

Cable has a Static Drain Wire (Ground Wire) attached to an Aluminum Foil Shielding Layer

Only CAT6A RJ45 Plugs will fit this cable as the cable was originally designed to be punched down only

As low as $217.99 each + $30.00 tariff = $247.99 ea   UPS Overweight Item

SPECS:

• -Direct Burial Cable  w/ Foil Shielding

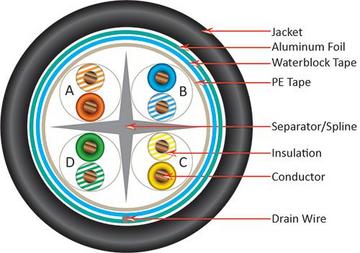

  This cable has 5 different layers!

      1.  Weather Resistant Outdoor Jacket
      2. Aluminum Foil Shielding w/ Static Drain Wire (Grounding wire)
      3. Plastic Film
      4. Water Resistant Internal Jacket Layer (Almost as thick as the outer jacket)
      5. Four Twisted Wire Pairs

  Specs:
• •  Cable designed to be punched down to Keystone Jacks, Patch Panels, Mount Boxes or Punch Down Blocks Only.  Due to its Thicker Diameter Conductors,  standard CAT6 RJ45s will NOT fit this cable.

    We now offer CAT6A plug that will accommodate this cable. Although, it's not a very 'User Friendly' RJ45 to work with, especially if you’re a novice at crimping RJ45s. Link to CAT6A Plugs: https://www.cat6cableguy.com/inc/sdetail/176/292291 We provide an instruction guide on the website item page for this product. We also carry the new Feed-through CAT6 Shielded RJ45.  Highly Recommended product.  https://www.cat6cableguy.com/inc/sdetail/176/298765


  • High-Performance Data Communications Cable
  •  Suitable for High-Speed Data Applications,
    Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
  •  Additional Tape Wrap Layer Designed for Direct Burial Installations
  •  LDPE UV Resistant Jacket for Outdoor Use
  •  Category 6 Rated up to 600MHz
  •  STP... Aluminum Foil Shielded
  •  4-Pair - Easily Identified Color-Striped Pairs
  •  23AWG, Solid Bare Copper Conductors
  •  Center Spline to reduce Crosstalk
  •  Excellent Attenuation and Crosstalk Characteristics
  •  Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
  •  ETL® Listed
  • Color: Black
  • Made in China
  • Comes on a Wooden Spool
  • For Direct Burial In-ground or Outdoor Conduit Duct application

For Full Direct Burial Cable Specifications Click Here

Old Part Number # C6-1000-CMXTT
New P/N 069-561/CMXT
